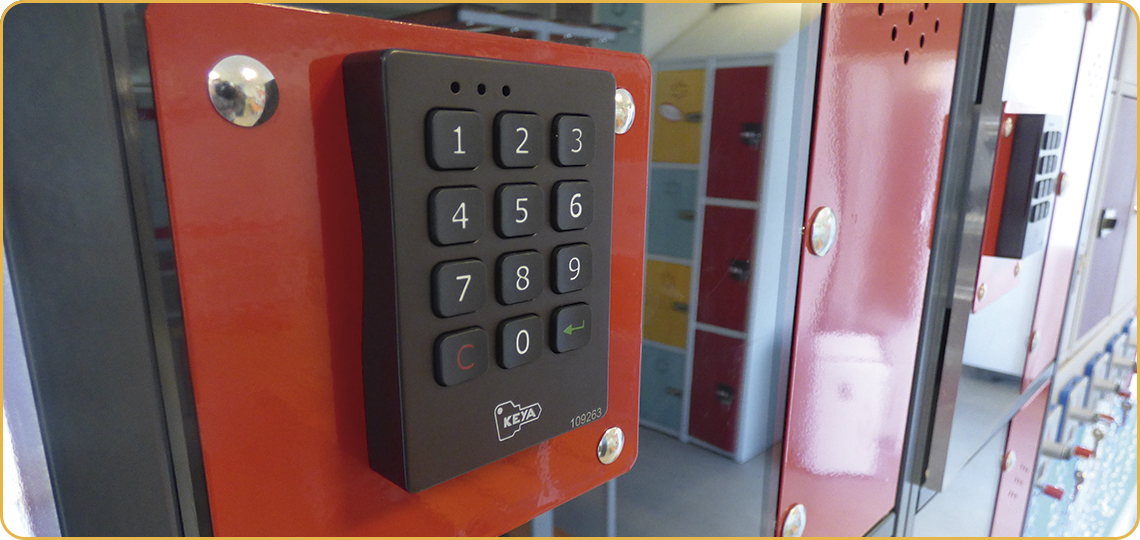

Characteristics:

This lock is designed to operate in Multi-User and Subscriber mode, offering the ability to dynamically manage locker zones while maintaining total security with its master code / inspection.
A robust metal keypad makes this lock suitable for both wet and dry environments, ensuring excellent performance in all types of installations.
It is easy to install and its dimensions are compatible to replace standard European coin lockers.

• Wet environments.
• 4 digits for user.
• 5 digits for master code.
• Multi-user and subscriber.
• Low battery indicator.
• 4 standard AA batteries.

Download:

Assembly instructions
Instructions for use

Characteristics:

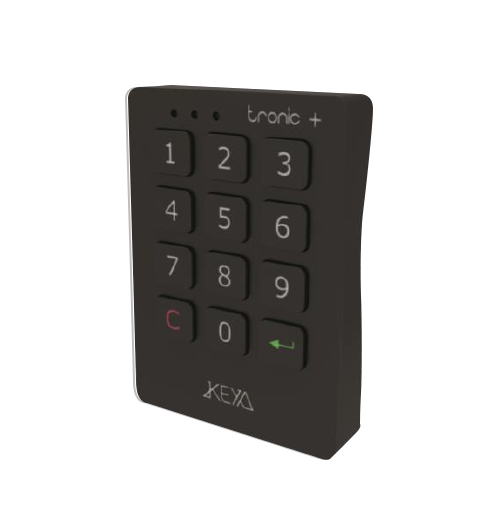

Electronic keypad lock. ABS housing.
12-key keypad. Combination of 4 to 8 digits. Subscriber, multi-user and double verification mode, modifiable from the keypad.
Low voltage alarm: if the voltage is lower than 4.5V, the lock will be activated with sound and light at each opening. And it cannot be locked when the voltage is lower than 4V.
Two power supply ways: 4 AAA batteries and 12V DC.
Three kinds of light signals.

• Green light flashes: It represents the correct input, standby.
• Red light flashes: Signifies input error.
• Blue light flashes: Represents low voltage.

Download:

Datasheet

Characteristics:

Electronic keypad lock with mechanical knob. Steel casing.
12-key keypad. Combination of 4 to 15 digits. Subscriber or multi-user mode, modifiable from the keypad.
With anti-theft technology and false PIN password function.
2 CR2032 batteries that can be used for 10,000 times. Automatic power failure warnings.
With management password and user password function.
Type C port can provide emergency power supply.
Alternative to open the lock mechanically with master key.

Download:

Datasheet

Characteristics:

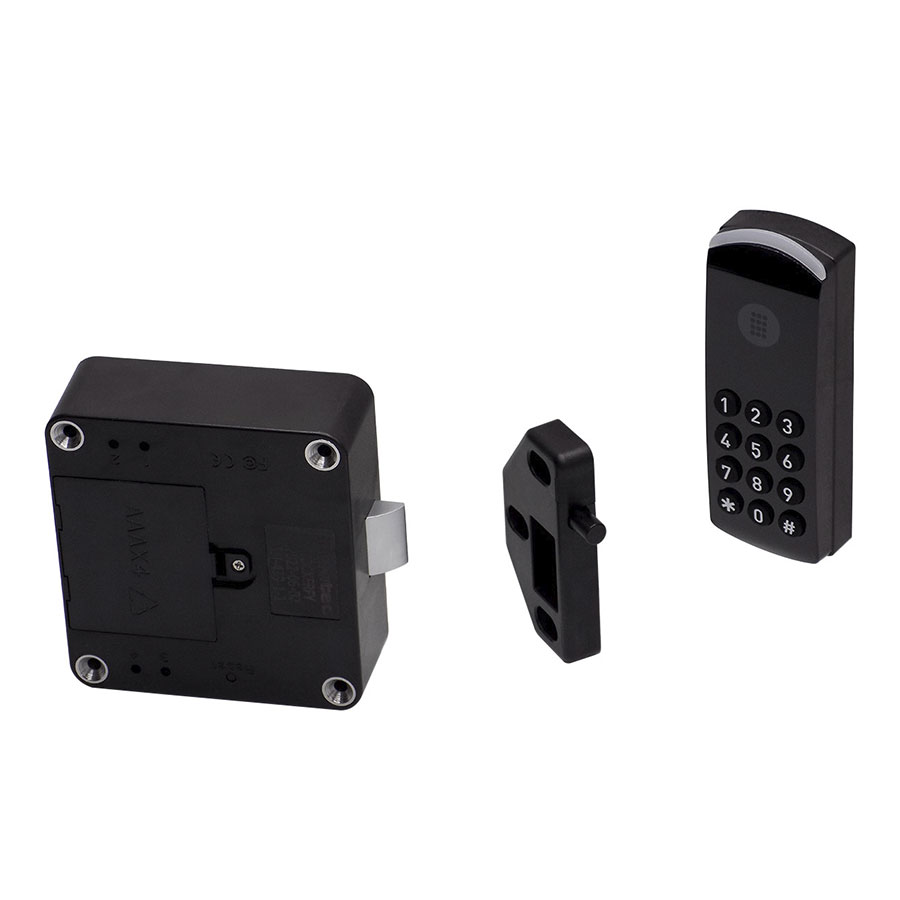

Electronic lock for lockers and furniture with Bluetooth opening via mobile APP and, optionally, opening by proximity and numerical code by installing the external keypad.
The Fylock electronic locker lock is the ideal solution for the custody of belongings of users and employees of Offices, Spas, SPA's, Gyms, Sports Centers, Educational Centers, Business Locker Rooms, Office Drawers, etc., as well as in lockers of shared rooms common in Hostels.
Quick and easy installation in lockers, cabinets, drawers, etc. Electronic lock suitable for installation on all types of materials.
Opening modes:

• BLE (Bluetooth Low Energy): with mobile APP.
  On-Line: remote opening via Gateway.
  Emergency: administrator master code for emergency opening.
  With optional keypad.

The Fylock electronic locker lock is connected on-line via Gateway. The administrator can manage users, list audits and open the lock remotely with his Smartphone.
Programmable automatic opening at a set time.
No wiring required, powered by 4 AAA batteries. With a charge level below 10%, Fylock does not lock to avoid the risk of not being able to open later.
Forced opening alarm: emits sound and lights up in case of forced opening.
Dimensions: Lock 95 x 90 x 30 mm | Keypad 100 x 36 x 19 mm.
For opening an electronic lock with depleted batteries, Fylock is equipped with a connector that allows to power the lock by connecting an external battery.





Download:

Datasheet
